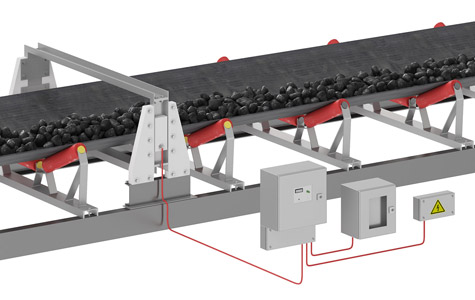

CASSEL Metal detector PSQ/RA

  • Built to withstand harsh industrial environments, with exceptional resistance to weather, dirt, stone impact, and machine vibrations for dependable long-term performance.
  • Simple, time-saving installation minimizes downtime and allows for fast integration into existing conveyor systems.
  • Designed to operate reliably near frequency converters without compromising detection accuracy or system performance.
  • Provides consistent detection sensitivity across varying sensing heights above the conveyor belt for dependable metal detection.
  • CE-certified to meet recognized European safety, health, and environmental standards.

Features

  • Average sensitivity (from M40 nuts)
  • Nearly homogeneous sensitivity on the belt and in the upper layers of the product
  • Can be used close to frequency converters, only 3 foot minimum distance between probe and motors or magnets
  • Passage widths from 3 to 8 feet and heights can be adjusted as required
  • Robust design
  • Easy operation
  • Monitoring and display of internal parameters
Call to Order - 864-836-3600

Description

Specifications

Model Name/ID Metal detector PSQ/RA
Electronics Analogue, self-adjusting, VFD noise filter, vibration immunity filter, detection level knob
Input 1 coaxial cable, probe
Output Metal alarm: 1 relais with 2 floating changeover contacts, switching capacity 230V
5A resistive load, switchable between normally relaxed or normally activated mode
Fault signal: 1 relais with 2 floating changeover contacts, switching capacity 230V
5A resistive mode
Inspection Method High-frequency magnetic field, eddy current discrimination
Metal Detection Ferrous, non-ferrous (e.g. aluminum or copper) and stainless steel
Product Compensation Automatic ignoring of iron oxide and ores
Protection Type Control box: IP55
Frame probe: IP67
Ambience Control box: -20°C up to +55°C
Frame probe: for execution PE up to +60°C
for execution PA6.6 up to +12-°C
Product Temperature -20°C up to +55°C / -4°F to 131°F
Power Supply 110-230V, 50/60 Hz, typ. consumption 15 VA
Interface no digital interface
Maintenance Maintenance-free, sensors calibrate themselves
Diagnostics built-in-instrument for function control
Conformity CE
