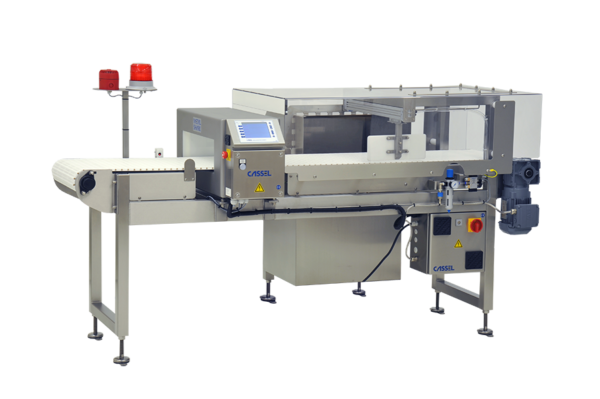

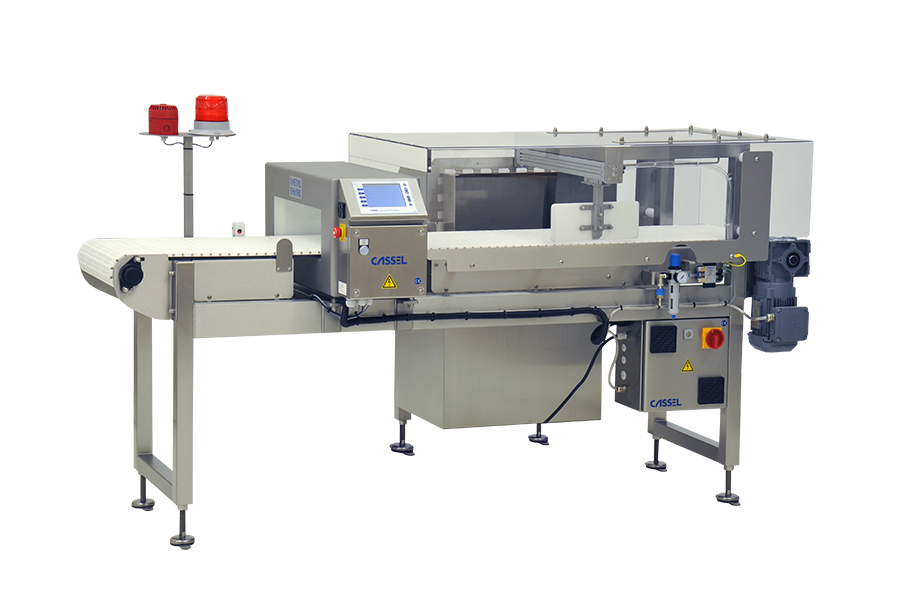

CASSEL Conveyor HQ

CASSEL Conveyor HQ

  • Conveyor belts HQ – optimally adapted to use with metal detector Metal SHARK® BD
  • 100% stainless steel – stable construction and easy to clean
  • Different belt types and various ejection systems for every application, FDA compliant, and heat resistant up to 120°C
  • Accessories such as railing, lights, covers, light sensors can be added individually
  • BRC-Kit: Conformity with all current standards for machines in the food industry

Features

    • Various rejection systems available: AirJet, transversal or linear rejection unit, flip arm, retreating beltnose, flapping roller tables and others
    • Various belt types like PU or Intralox chainlink, in standard versions or abrasion-resistant antistatic etc.
    • Accessories: covers, light barriers, railing systems, lights, sirens etc. mounted according to your needs
    • Conveyor HQ is optimally adapted to use with the METAL SHARK BD metal detector
    • IP protection class IP65, with Low Pressure Washdown (LPW) or High Pressure Washdown (HPW) option higher IP ratings possible
    • With BRC kit optimally suited for the food industry
Call to Order - 864-836-3600
Categories: , , , , ,

Description

Specifications

Protection Type IP65 (IEC 60529) IP66 possible with package LPW-/HPW
Power Supply 220-240 VAC, 1ph, 50-60 Hz 110 VAC, 1ph, 60 Hz
Frame Stainless steel AISI 304 / ISO 1.4301, profiles closed on all sides, available with adjustable feet (standard) or castors
Height 800 mm ± 100 mm other heights and designs possible
Belt Speed 12 -24 m/min (variable speed with variant STR/STL, others on request
Belt Control SEW 0.25 kW or worm gear motor 0.25KW, depending on requirements also larger
Product Weight Belt control with frequency converter available for 115V and 230V
Conformity CE as a standard, BRC possible
