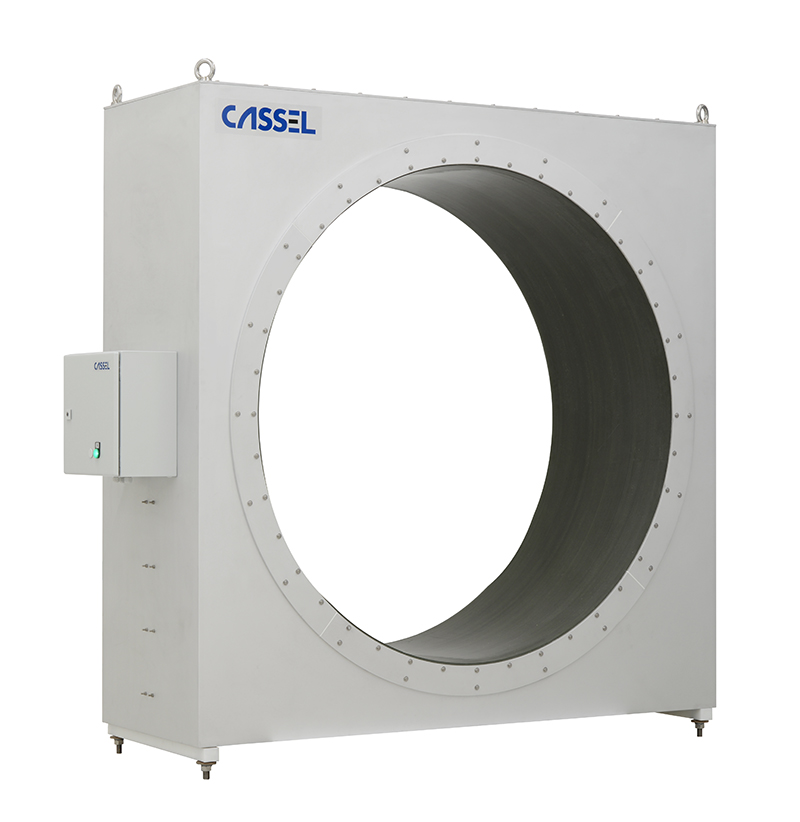

CASSEL METAL SHARK BIG RD

CASSEL METAL SHARK BIG RD

  • Rugged aluminum construction is built for harsh outdoor environments, offering excellent weather resistance and a compact metal-free zone.
  • Advanced 4-quadrant detection technology delivers exceptional metal detection performance and superior immunity to electrical noise, with an optional Power Drive upgrade for even greater sensitivity.
  • Specifically designed for reliable inspection of entire timber logs to help prevent equipment damage and maintain uninterrupted production.
  • Low-maintenance design minimizes service requirements while maximizing system uptime.
  • Automatic calibration and continuous balance control ensure consistent, dependable detection accuracy over time.
  • Simple installation and intuitive operation make setup and day-to-day use fast and efficient.

Features

  • Standard tunnel diameter up to 5 ft (other sizes on request)
  • Simple setup: TeachAssistant
  • Simple operation: Intuitive and multilingual menus
  • Password protection including user permission management
  • Documentation of all settings, metal alerts, etc.
  • Remote control and remote maintenance via the company network using SHARKNET® software (option)
  • Extended temperature range down to -40°C / -40°F with specially adapted sensor and specially equipped control unit (option)
Call to Order - 864-836-3600
Categories: , , , , ,

Description

Specifications

Model Name/ID METAL SHARK BIG RD
Electronics Digital signal processor, digital frequency generation, digital balance control, automatic calibration, digital noise filters, integrated flexible control functions
Input 2 analog 0 …10 V DC (option: 4-20 mA)
8 freely configurable 24 V DC signals, e.g. for rotary encoders, product identification, buttons
Output 2 floating: “error” and “metal”
8 freely configurable 24 V DC signals, e.g. solenoid valve, visual/acoustic alarm
Inspection Method High-frequency magnetic field, multi-channel operation, balanced receiver coils
Metal Detection Ferrous, non-ferrous (e.g. tombac, brass, bronze, aluminium, lead, etc.) and stainless steel
Product Compensation 250 memory locations, TeachAssistant
Protection Type IP 65
Ambience -30°C to +40°C / -22°F to 104°F
UL version: -20°C to +40°C / -4°F to 104°F
Optional: -40°C / -40°F or +55°C / 122°F
Rel. humidity 20% to 90%, non-condensing
> 95% relative humidity (condensing) with control unit closed
Product Temperature Up to 70°C / 158°F
Power Supply Single-phase 110-230 V AC +/- 5%, 20 W typical (60 W max.)
Interface RS232, LAN (optional, for SHARKNET®), USB (optional)
Maintenance Very low maintenance, self-calibrating sensors
Diagnostics Integrated diagnostic software, automatic self-test
Conformity CE
