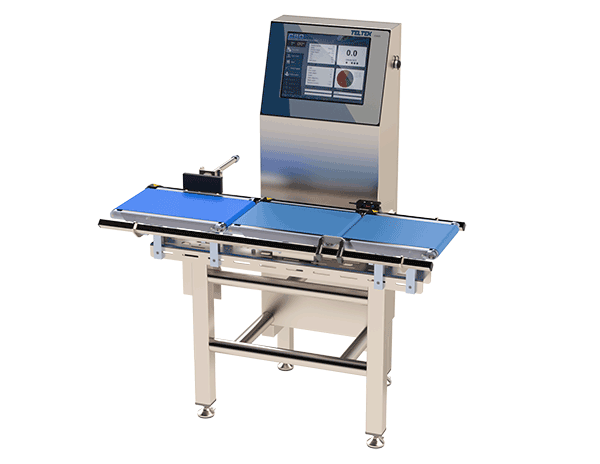

CASSEL Checkweigher Teltek C80

CASSEL Checkweigher Teltek C80

The Teltek C80 Checkweigher is a high-speed, high-precision inspection solution engineered for demanding production environments. As Teltek’s most advanced checkweigher, the C80 can manage up to four independent weighing systems through a single, integrated software platform, providing centralized control and complete visibility across multiple production lines. Designed for maximum flexibility, it supports multi-line weighing of up to four lanes while seamlessly integrating with filling machines, metal detectors, and other inspection equipment. The system also features comprehensive data collection and advanced production analytics, enabling manufacturers to monitor performance, optimize efficiency, improve quality control, and make informed operational decisions.



Features

  • Checkweigher for 500 ppm speed combined with high accuracy
  • Easy-to-use with settings for tare, upper and lower weight limits (TU2, TU1 TO1, TO2) and conveyor speed
  • PC based Windows operating system with options for wired or wireless data transfer
  • Production reports in Microsoft Excel or as Adobe PDF
  • Controls up to four weighing units
  • Stainless steel, IP66 with conveyors driven by maintenance free brushless DC motors
  • MID homologation, CE certification
  • Several reject devices including Air Blast, Pusher, Single or Double Flipper/Divert Arm and Drop Flap
  • Several belt dimensions available, customized to your application
Call to Order - 864-836-3600
Categories: , , , , ,

Description

Specifications

Model Name/ID C80-S3 C80-H6 C80-H12 C80-B20 C80-B40
Maximum Belt Speed 75 m/min 35 m/min 25 m/min 25 m/min 15 m/min
Maximum Product Length Weighing conveyor -150 mm. Weighing conveyor -150 mm. Weighing conveyor -150 mm. Weighing conveyor -150 mm. Weighing conveyor -150 mm.
Maximum Product Weight 15 g to 3,000 g (weight range adapted to actual product weights) 600 g to 6,000 g (weight range adapted to actual product weights) 1,500 g to 12,000 g (weight range adapted to actual product weights) 3,000 g to 20,000 g (weight range adapted to actual product weights) 3,000 g to 40,000 g (weight range adapted to actual product weights)
Dimensions of Conveyors L: 250-600 mm
W: 200 or 300 mm (belt widths 160 or 250 mm)		 L: 400-600 mm
W: 400 mm (belt width 350 mm).		 L: 500-1000 mm
W: 400 (belt width 350)		 L: 750 or 1000 mm
W: 500 mm (belt width 450 mm)		 L: 750 or 1000 mm
W: 600 mm (belt width 550 mm)
Maximum Throughput Capacity 250 pcs/min@250 mm long weighing conveyor or 115 prod/min@600 mm long weighing conveyor 77 prod/min@400 mm long weighing conveyor or 53 prod/min@600 mm long weighing conveyor 45 prod/min@500 mm long weighing conveyor or 22 prod/min@1000 mm long weighing conveyor 30 prod/min@750 mm long weighing conveyor or 23 prod/min@1000 mm long weighing conveyor 18 prod/min@750 mm long weighing conveyor or 14 prod/min@1000 mm long weighing conveyor.
Reject One pusher or blow reject included (maximum 300 g product weight for blow reject) One pusher reject included One pusher reject included No reject inlcuded (reject signal available) Mo reject inlcuded (reject signal available). With AC motor and inverter
