CASSEL Metal detector SQ/SQTA

CASSEL Metal detector SQ/SQTA

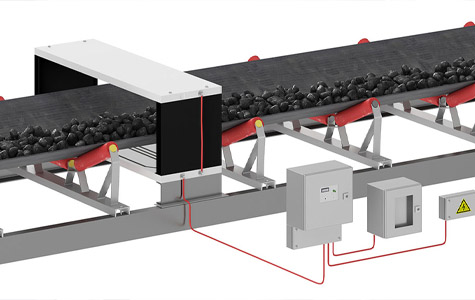

The SQ metal detector features a single-probe design that installs quickly and easily beneath a conveyor belt, providing reliable metal detection for bulk material handling applications. For enhanced inspection performance, the SQTA tandem-probe model monitors material from both above and below the conveyor belt, delivering increased protection against metal contaminants and improving overall detection accuracy.

  • Designed to monitor bulk materials in demanding mining, aggregates, and building materials applications.
  • Self-adjusting technology and straightforward installation reduce setup time and simplify integration into existing conveyor systems.
  • Manufactured with premium-quality components to deliver dependable performance, long service life, and minimal maintenance requirements.
  • Reliably detects both ferrous and non-ferrous metal contaminants while ignoring naturally occurring iron oxide and ore to reduce false alarms.
  • Probe and amplifier are engineered to withstand vibration, harsh weather, dirt, and stone impacts, ensuring reliable operation in rugged industrial environments.
  • Heavy-duty aluminum construction provides exceptional durability, corrosion resistance, and easy cleaning for long-lasting performance.

Features

  • High sensitivity (M6 nuts) at belt speed of 0.1 – 4 m/s
  • Simple operation
  • Can be used near frequency converters, only 3 ft distance between probe and motors or magnets
  • Monitoring and display of internal parameters
  • Optional: Realization as tandem for higher debris heights
  • Optional: complete blanking of magnetite Fe304
Call to Order - 864-836-3600
Categories: , , , , ,

Description

Specifications

Model Name/ID Metal detector SQ/SQTA
Electronics Analogue, self-adjusting, VFD noise filter, vibration immunity filter, detection level knob
Input Sensor and coaxial cable
Output Metal alarm: 1 Siemens comb relay with 2 potential-free changeover contacts
Switching capacity 230V, 6A resistive load, quiescent or operating current principle switchable
Fault: 1 Siemens comb relay with 1 potential-free changeover contact
Switching capacity 230V, 6A resistive load
Inspection Method High-frequency magnetic field, eddy current discrimination
Metal Detection Iron, non-ferrous (e.g. aluminum or copper), largely ignores ores
Optional: complete blanking of magnetite Fe304
Product Compensation Automatic ignoring of iron oxide and ores
Protection Type IP55
Ambience -20°C up to +55°C
Product Temperature -20°C up to +55°C / -4°F to 131°F
Power Supply 230V 15Hz +/- 15%, typ. consumption 15VA
Interface no digital interface
Maintenance Maintenance-free, sensors calibrate themselves
Diagnostics built-in-instrument for function control
Conformity CE
