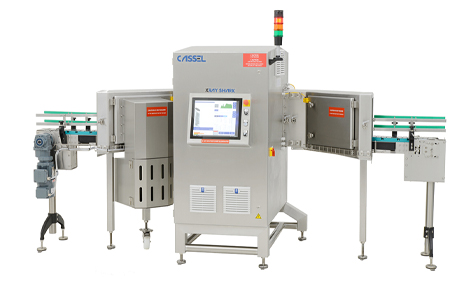

| Model Name/ID |
XS25-L1-GIG (former XBD20 side) |
XD25-H1-GIG (former XBD40 side) |
| X-Ray Source |
Single beam x-ray generator with max. 60kV (50W), variable in voltage + current |
Single beam x-ray generator with max. 80kV (480W), variable in voltage + current |
| Radiation Leakage |
1 µSv/h or less, at 10 cm ouside cabinet surfaces using all safety devices |
3 µSv/h or less, at 10 cm ouside cabinet surfaces using all safety devices |
| Safety |
Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch |
Special product tunnel, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch |
| X-Ray View |
1x sideways (sideup) |
1x sideways (sideup) |
| Cooling |
Highly efficient, silent DC filter fans/Optional air conditioner |
Highly efficient, silent DC filter fans/Optional air conditioner |
| Housing Finish |
stainless steel grade AISI 304 / DIN EN 1.4301 (X5CrNi18-10) |
stainless steel grade AISI 304 / DIN EN 1.4301 (X5CrNi18-10) |
| Protection Type |
IP54 (according to IEC 60529), including touch panel and fans; product tunnel itself IP66 |
IP54 (according to IEC 60529), including touch panel and fans; product tunnel itself IP66 |
| Conveyor Type |
metal chain or plastic chain |
metal chain or plastic chain |
| Belt Width |
114 mm |
114 mm |
| Scanning Height |
250 mm |
250 mm |
| Conveyor Speed |
Conveyor speed by product up to 0.5 m/s |
Conveyor speed by product up to 0.5 m/s |
| Max Product Dimensions |
width x height: 150 x 250 mm |
width x height: 150 x 250 mm |
| Max Product Weight |
25 kg total weight |
25 kg total weight |
| Available Reject Method |
high speed pusher for glass |
high speed pusher for glass |
| Product Memory |
255 different product set-ups |
255 different product set-ups |
| Display |
17“ color-TFT capacitive touchscreen |
17“ color-TFT capacitive touchscreen |
| Inspection Features |
Autocalibration, auto adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection |
Autocalibration, auto adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection |
| In/Outputs |
Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) |
Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) |
| Data Transfer and Reporting |
Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick |
Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick |
| Weight |
0.85 t |
0.9 t |
| Power Supply |
1ph, 230 VAC +/- 10%, 50/60 Hz max. 1.5 kW |
max. 2.5 kW |
| Compressed Air Supply |
without reject system 0 MPa (0 bar/ 0 psi) with optional reject system minimum 0.4 MPa ( 4 bar / 58 psi) |
without reject system 0 MPa (0 bar/ 0 psi) with optional reject system minimum 0.4 MPa ( 4 bar / 58 psi) |
| Environmental Conditions |
10°C to +35°C / 50°F to 95°F, with relative humidity max 90%, non-condensingoptional external cooling device |
10°C to +25°C / 50°F to 77°F, with relative humidity max 90%, non-condensingOption: additional external cooling devices to extend the temperature range |
| Conformity |
CE, compliant to german x-ray regulations, specific adaptation for other countries |
CE, compliant to german x-ray regulations, specific adaptation for other countries |
| X-Ray Detector |
Low noise 510 mm line scan CCD, diode pitch 0.8 mm or 0.4 mm (optional) |
Low noise 510 mm line scan CCD, diode pitch 0.8 mm or 0.4 mm (optional) |
