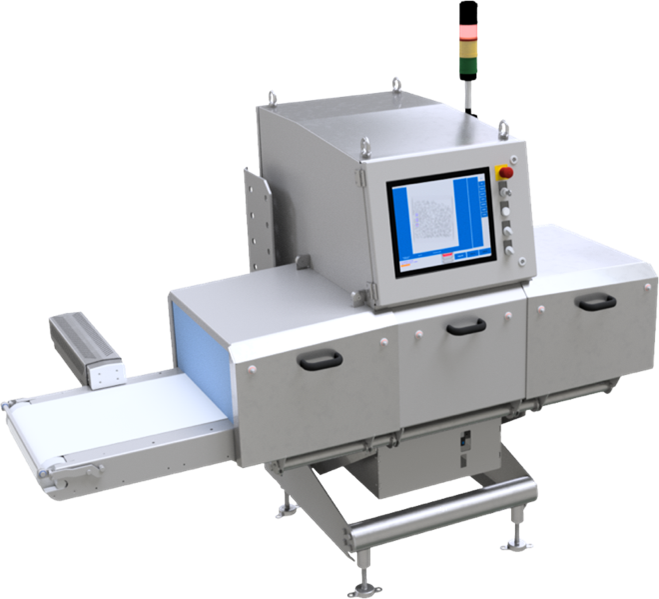

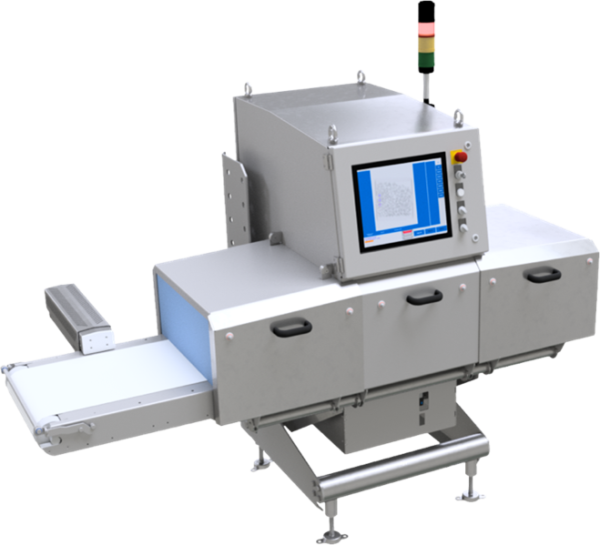

| Model Name/ID |
XD38-L1 (former XBD20+) |
XD38-H1 (former XBD40) |
| X-Ray Source |
Single beam x-ray generator with max. 60kV (50W), variable in voltage + current |
Single beam x-ray generator with max. 80kV (480W), variable in voltage + current |
| Radiation Leakage |
1 µSv/h or less, at 10 cm outside cabinet surfaces using all safety devices |
1 µSv/h or less, at 10 cm outside cabinet surfaces using all safety devices |
| Safety |
X-ray protective curtains (lead-free) – quickly detachable, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch |
X-ray protective curtains (lead-free) – quickly detachable, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch |
| X-Ray View |
top down |
top down |
| Cooling |
Highly efficient, silent DC filter fans/Optional air conditioner |
Highly efficient, silent DC filter fans/Optional air conditioner |
| Housing Finish |
Stainless steel grade AISI 304 / DIN EN 1.4301 (X5CrNi18-10) |
Stainless steel grade AISI 304 / DIN EN 1.4301 (X5CrNi18-10) |
| Protection Type |
IP54 (according to IEC 60529), including touch panel and fans, optional IP65 overall, IP69K tunnel |
IP54 (according to IEC 60529), including touch panel and fans, optional IP65 overall, IP69K tunnel |
| Conveyor Type |
Polyurethane belt light blue, food grade |
Polyurethane belt white, food grade |
| Belt Width |
400 mm |
400 mm |
| Scanning Width |
380 mm |
380 mm |
| Conveyor Speed |
Conveyor speed by product up to 1.11 m/s |
Conveyor speed by product up to 1.11 m/s |
| Max Product Dimensions |
width x height: 340 x 60 mm / 300 x 100 mm / 250 x 160 mm / 200 x 200 mm |
width x height: 340 x 60 mm / 300 x 100 mm / 250 x 160 mm / 200 x 200 mm |
| Max Product Weight |
7 kg |
7 kg |
| Available Reject Method |
Additional conveyor with air jet or transversal pusher |
Additional conveyor with air jet or transversal pusher |
| Product Memory |
255 different product set-ups |
255 different product set-ups |
| Display |
17“ color-TFT capacitive touchscreen |
17“ color-TFT capacitive touchscreen |
| Inspection Features |
Autocalibration, auto adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection |
Autocalibration, auto adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection |
| In/Outputs |
Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) |
Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) |
| Data Transfer and Reporting |
Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick |
Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick |
| Weight |
500 kg |
500 kg |
| Power Supply |
1ph, 230 VAC +/- 10%, 50/60 Hz, full operation 0.5 kW |
1ph, 230 VAC +/- 10%, 50/60 Hz, full operation 1.0 kW |
| Compressed Air Supply |
Without reject system 0 MPa (0 bar/ 0 psi) With optional reject system minimum 0.4 MPa ( 4 bar / 58 psi) |
Without reject system 0 MPa (0 bar/ 0 psi) With optional reject system minimum 0.4 MPa ( 4 bar / 58 psi) |
| Environmental Conditions |
10°C to +30°C / 50°F to 86°F, with relative humidity max 90%, non-condensing Option: additional external cooling devices to extend the temperature range |
10°C to +50°C / 50°F to 122°F, with relative humidity max 90%, non-condensingOption: additional external cooling devices to extend the temperature range |
| Conformity |
CE, compliant to german x-ray regulations, specific adaptation for other countries |
CE, compliant to german x-ray regulations, specific adaptation for other countries |
| X-Ray Detector |
Low noise 408 mm line scan CCD, diode pitch 0.8 mm (0.4 mm optional) |
Low noise 408 mm line scan CCD, diode pitch 0.8 mm (0.4 mm optional) |
