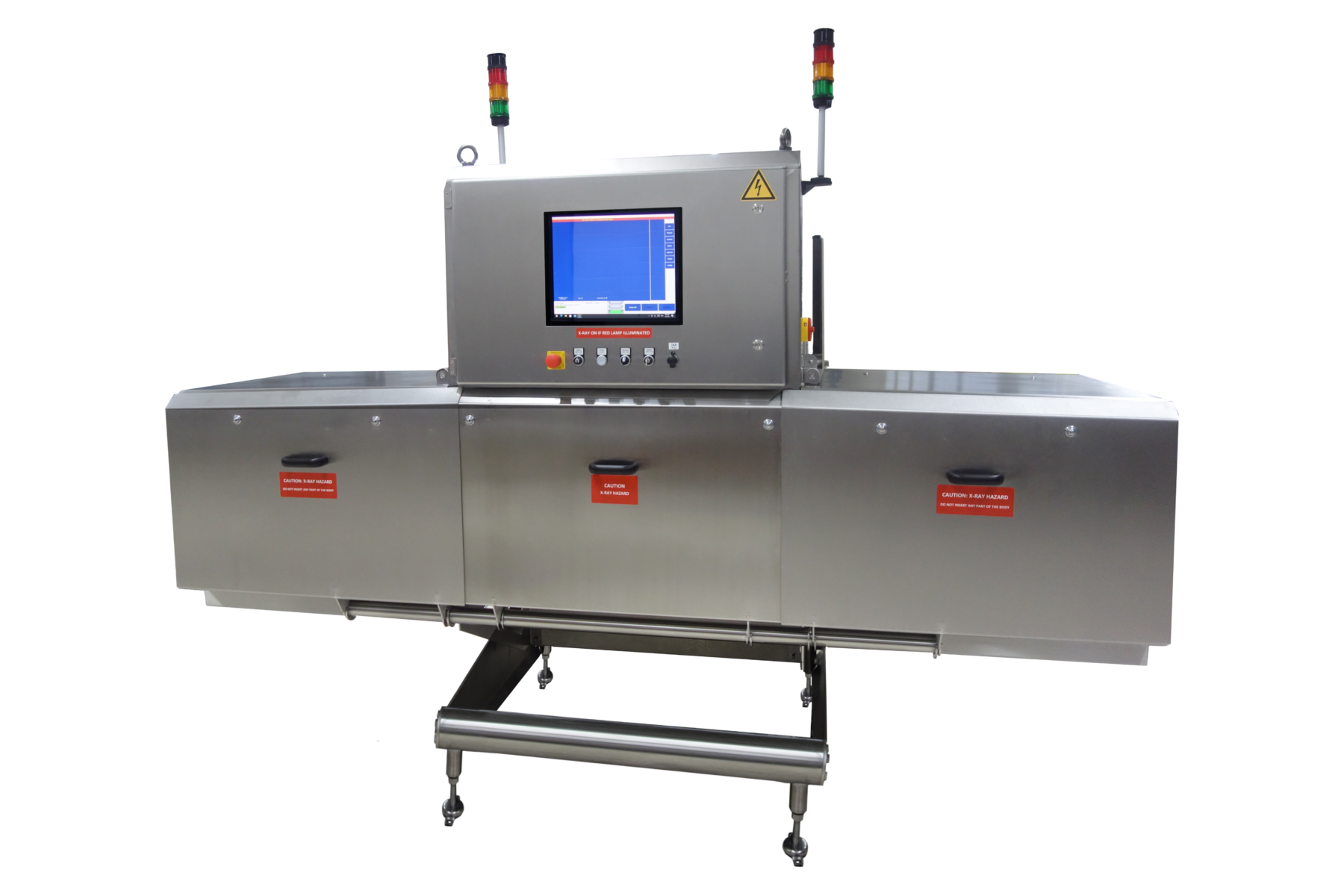

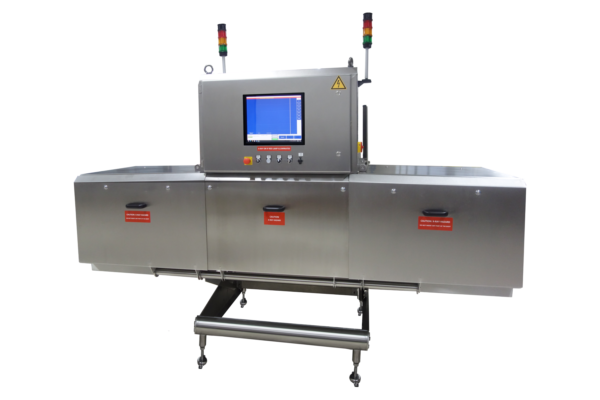

| Model Name/ID |
XD68-H1 (former XBD45+) |
XD68-H2 (former XBD80+) |
| X-Ray Source |
Single beam x-ray generator with max. 80kV (480W), variable in voltage + current |
Dual beam x-ray generator with max. 80kV (2x480W), variable in voltage + current |
| Radiation Leakage |
3 µSv/h or less at 10 cm outside cabinet surfaces using all safety devices |
3 µSv/h or less at 10 cm outside cabinet surfaces using all safety devices |
| Safety |
X-ray protective curtains (lead-free) – quickly detachable, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch |
X-ray protective curtains (lead-free) – quickly detachable, magnetic safety switches at cabinet doors and tunnel hatches, emergency stop push button, emergency stop in/out interfaces to safety circuits of production line, X-ray off key switch, PILZ safety circuit |
| X-Ray View |
1x top down |
2x top down |
| Cooling |
Highly efficient, silent DC filter fans/Optional air conditioner |
Highly efficient, silent DC filter fans/Optional air conditioner |
| Housing Finish |
Stainless steel grade AISI 304 / DIN EN 1.4301 (X5CrNi18-10) |
Stainless steel grade AISI 304 / DIN EN 1.4301 (X5CrNi18-10) |
| Protection Type |
IP54 (according to IEC 60529), including touch panel and fans, optional: IP56 overall, IP69K tunnel |
IP54 (according to IEC 60529), including touch panel and fans, optional: IP56 overall, IP69K tunnel |
| Conveyor Type |
Polyurethane belt white, food grade |
Polyurethane belt white, food grade |
| Belt Width |
680 mm |
680 mm |
| Scanning Width |
680 mm |
680 mm |
| Conveyor Speed |
Conveyor speed by product up to 0.59 m/s |
Conveyor speed by product up to 0.59 m/s |
| Max Product Dimensions |
width x height: 650×180 mm / 560×250 mm / 500×300 mm / 450×350 mm / 320×435 mm |
width x height: 680 x 380 mm |
| Max Product Weight |
50 kg total weight |
50 kg total weight |
| Available Reject Method |
Additional conveyor with air jet or transversal pusher |
Additional conveyor with air jet or transversal pusher |
| Product Memory |
255 different product set-ups |
255 different product set-ups |
| Display |
17“ color-TFT capacitive touchscreen |
17“ color-TFT capacitive touchscreen |
| Inspection Features |
Autocalibration, auto adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection |
Autocalibration, auto adaption to density distribution, density, hard contrast, soft contrast, masking technology, SuperContrast, SizeFilter, AutoEdge masking, images AutoSave/Load, Multi Segment Inspection, metal can and foil inspection, fill quantity, generator energy by product, password protection |
| In/Outputs |
Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) |
Programmable outputs (contamination, ready, Emergency OFF) Programmable inputs (Emergency OFF, wake up, optional control signals) |
| Data Transfer and Reporting |
Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick |
Ethernet for remote support via internet, USB for external keyboard/ mouse/ memory stick |
| Weight |
1.5 t |
1.5 t |
| Power Supply |
3ph, 400 VAC +/- 10%, 50/60 Hz, 2.0 kW full operation |
3ph, 400 VAC +/- 10%, 50/60 Hz, full operation 1.0 kW |
| Compressed Air Supply |
without reject system 0 MPa (0 bar/ 0 psi) with optional reject system minimum 0.4 MPa ( 4 bar / 58 psi) |
without reject system 0 MPa (0 bar/ 0 psi) with optional reject system minimum 0.4 MPa ( 4 bar / 58 psi) |
| Environmental Conditions |
10°C to +15°C / 50°F to 59°F, with relative humidity max 90%, non-condensingOption: additional external cooling devices to extend the temperature range |
10°C to +40°C / 50°F to 104°F, with relative humidity max 90%, non-condensing |
| Conformity |
CE, compliant to german x-ray regulations, specific adaptation for other countries |
CE, compliant to german x-ray regulations, specific adaptation for other countries |
| X-Ray Detector |
Low noise 816 mm line scan CCD, diode pitch 0.8 mm or 0.4 mm (optional) |
Low noise 816 mm line scan CCD, diode pitch 0.8 mm or 0.4 mm (optional) |
