THS/GMS21 THS/G21 Free-Falling

Inquire

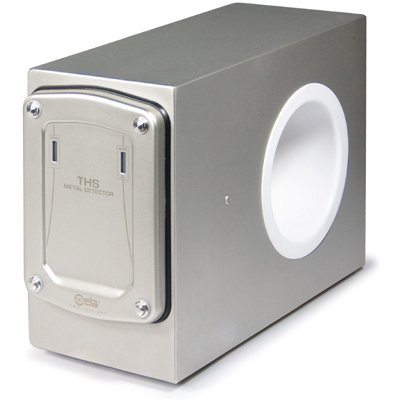

THS/GMS21 THS/G21 metal detector

For free-falling product applications

  • Extremely high sensitivity to all magnetic and non-magnetic metals, including stainless steels
  • Multispectrum Technology for extreme compensation of the product effect
  • High level of immunity to environmental interference
  • Autotest function
  • Automatic assessment of detection performance
  • Construction and components in AISI 316L stainless steel with IP66- and IP69K-level protection
  • Auto-acquisition and tracking of the product effect
  • Up to 500 products storable in memory, selectable in local programming or network software
  • Up to 5000 events storable in memory
  • High-definition graphic display
  • Local programming: 16 keys, of which 3 have double functions
  • “Quick Access” function for the most frequently used commands

Options & Accesories


Bar-Code Reader

Reading the Bar-Code printed on the package, the metal detector select on-the-fly the appropriate detection parameters and the ejection timing, allowing multiple products lines to be inspected without manual change of the parameters.

Eithernet InterfaceEthernet module required for the network connection of several metal detectors or for the connection of one or more metal detectors over long distances.

WiFi InterfaceWi-Fi module required for the network connection of several metal detectors or for the connection of one or more metal detectors over long distances.

Infeed ConveyorsSet from 2 to 5 pieces to easily feed up the Metal Detector

MD ScopeMDSCOPE is a software package specifically developed by CEIA in order to allow easy and complete testing of the functioning of a Metal Detector – without the use of special instrumentation – both during the setting up phase and on the occasion of periodic tests. Using a personal computer, MDSCOPE allows adjustment and monitoring of the Metal Detector, as well as the storage and printing of the data gathered.

Software InterfaceTHS Production plus software for statistical and operational management of networked THS systems.

Remote Control UnitMetal Detector Power Supply Unit.


Additional Images

Infeed Conveyors Infeed Conveyors
